FIRST For Resin Bound Wet Pour Rubber Crumb Installation
Resin Bound Wet Pour Rubber Crumb can transform the external appearance of your home and provide a safe area for children to play.
FIRST can transform Play Surfacing, Safety Surface for Nurseries & Schools. A variety of Sports solutions for residential, leisure and commercial properties
Perfectly laid Wet Pour surfaces offer impact absorbing results and provide an area that can be used all year round. We have a wide selection of Wet Pour surfacing colours that will provide a stunning visual finish to any area
The EDPM Wet Pour Rubber Crumb is non –toxic, made from 100% recyclable materials, specialist pigment and UV stabilisers. It has high elasticity, wear resistance and low density for excellent coverage
Rubber crumb is the ideal surface product for any area where there is a risk of falling. It is particularly useful where young children or elderly people are present.
It comes in a rainbow of colours, has a high elasticity and is fully fade resistant. Because it is low maintenance, it means you won’t be spending all your time cleaning it.
This product is also good for the environment since 100% of the rubber is from recycled sources.
Critical Fall Height (C.F.H)
Playground operators must choose a surface with a Critical Fall Height rating that matches or exceeds the maximum possible ‘free height of fall’ from their play equipment. S separate Standard, EN 1177:2008, defines the Critical Fall Height tests. An instrumented ‘head form’ representing a child’s head is dropped from various heights onto the test specimen, and its deceleration is monitored. The greatest height of fall that keeps maximum deceleration below the permitted level gives the Critical Fall Height rating for the surface product.

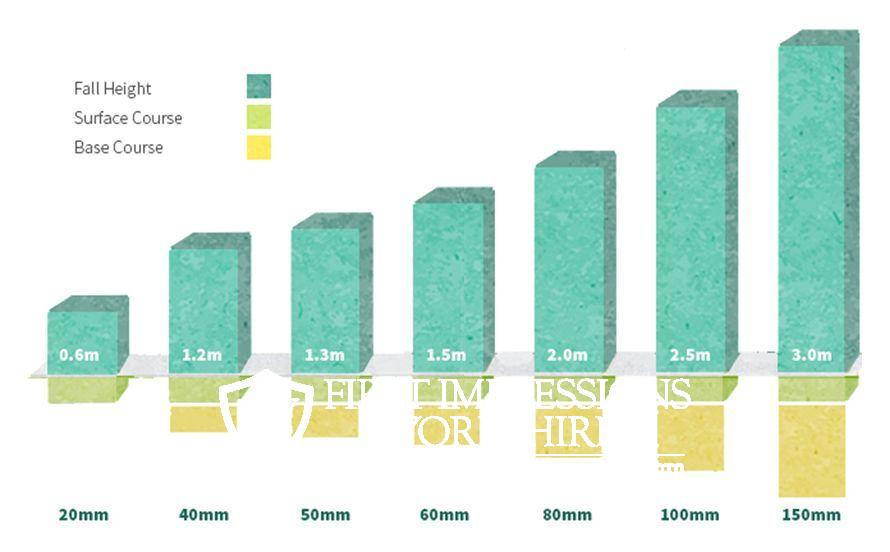

If you require any alternative heights from the ones displayed below, please contact us. Under low play equipment with free height falls of under 60mm, the surface is only required to have ‘some impact attenuating properties’. We recommend 20mm thickness in this case and for general runabout areas. The top of the impact attenuating surface should be at the level of the base level mark on the playground equipment.
Benefits of Rubber Crumb
- Very safe
- Can be used in all weather
- Fast draining
- Durable and therefore cost effective
- Extremely resistant to cracking due to changes in temperature
- Wide range of colours available
- Vandal resistant
- Definitions: Terms used within British/European Standards
- BS EN 1177:2008: Impact absorbing playground surfacing – Safety requirements and test methods.
- BS7188: 198: Impact absorbing playground surfacing – Performance requirements and test methods.
- Free Fall Height: The greatest vertical distance from the clearly intended body support to the impact area below.
- Type of Use: Standing (from foot to surface). Sitting (from seat to surface). Hanging (from hand support to surface).
- Impact Area: The area that can be hit by the falling user.
- Critical Fall Height: The upper limit of Free Fall Heights for which surfacing provides an acceptable level of impact attenuation.
- Head Injury Criterion: The criterion for head injuries caused by falls, as calculated in accordance with the formula given in BS EN 1177.
All base details are intended as a guide only and do not constitute a specification
